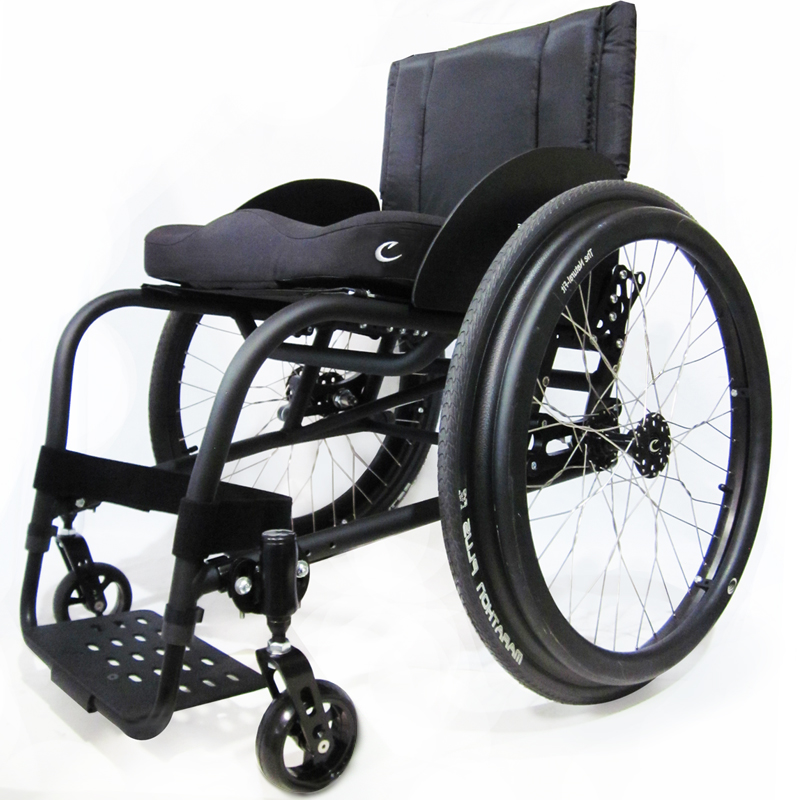

The “Eclipse” wheelchair offers not only a design to fit your bodily curves; it was made for convenience and easy compact handling.
The frame offers complete rear seat height , Center of Gravity, front seat height adjustability.
The New frame design offers growth options without having to replace the frame.
Frame: 1 in. tubing (A7003) Rigid Alum. Frame
Seat Width: 14 in. – 18in.
Seat Depth: (s. short & std. frame) 13 in. – 16 in.
Seat Depth: (3 in. Longer frame) 17 in. – 20 in.
Front Seat Height: 17.5 in. – 19.5 in. (3 in. caster)
Rear Seat Height: 14.5 in. – 18.0 in. (24 in. wheel)
Backrest Height: 8 in. – 18 in.
Camber Angle: 2, 4, 6, Degrees
Frame Taper: Top, Bottom or No Taper Frame
Weight Limit: 250 lbs..
Coding: K0005
Center Of Gravity: Adjustable
Chair Weight: 17 lbs.
Retail Price: $ 2,400 (Base Price)
Custom Dimensions Available
Luxuary Accessories
Polished Frame Option
Polished Parts Kit Options
Gold Plating Available
Powder Color Kit Options
Custom Frame Options
For more accessories options check out our guide
- Note accessories may require additional charge based on insurance provider. Please give us a call for more info.
For more information call us at 800-892-8998 or check the order form here
